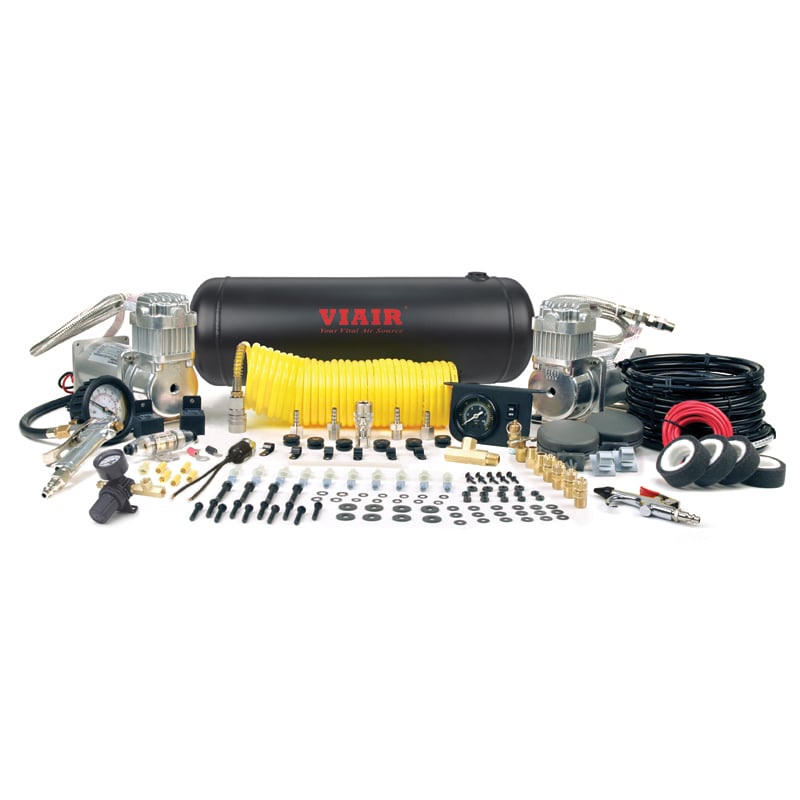

VIAIR X'treme Duty Onboard Air System (12V, 150 PSI Compressors, 2.0 Gal. Tank) CE
VIAIR’s X’treme Duty Onboard Air System is a pre-packaged compressed air solution that provides two fast 350C, 100% duty cycle compressors, 2.0 gallon air tank, inline pressure regulation, and all components needed to install a working system capable of inflating tires, managing air locking differentials, and more.
All Fittings are NPT rated unless otherwise noted. Wiring harness NOT included.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
Additional Info Download
| FEATURES |
|---|
| – 2.0 Gallon VIAIR Air Tank |
| – (2) 350C VIAIR Compressors w/Thermal Overload Protectors |
| – 30ft. Coil Hose with Quick Connects |
| – Tire Inflation Gun with 160 PSI Gauge |
| – Dash Panel Gauge with ON/OFF Switch |
| – 0-220 PSI Pressure Regulator |
| – Blow Gun Air Tool |
| – Sealed Pressure Switch (110 PSI on, 145 PSI off) |
| – (2) 40-Amp Relays |
| – (1) T-Fitting (1/4” (M) x 1/4″ (F) x 1/8” (F)) |
| – (1) T-Fitting (1/4” (M) x 1/4″ (F) x 1/4” (F)) |
| – 1/4” Quick Connect Stud (F) |
| – 1/4” Quick Connect Coupler (F) |
| – 1/4” 175 PSI Safety Valve |
| – 1/4” Drain Cock |
| – (2) 1/8” BSP to 1/4” NPT |
| – (4) 1/4” Compression Fittings |
| – 20ft. 12-Gauge Wire with Inline Fuse Holder |
| – 4” Strip of Continuous Grommet Material |
| – Accessory Airline |
| – Electrical Connections |
| SPECIFICATIONS |
|---|
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 100% @ 100 PSI |
| – Max. Working Pressure: 150 PSI |
| – Max. Amp Draw: 37-Amps |
| – Ingress Protection Rating: IP67 |
| – Max Ambient Temp: +158°F |
| – Min Ambient Temp: -40°F |
PERFORMANCE DATA
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.68 | 23 | 0 | 76.0 | 23 |
| 10 | 2.30 | 26 | 1.0 | 64.0 | 28 |
| 20 | 2.22 | 29 | 2.0 | 60.0 | 31 |
| 30 | 2.12 | 31 | 3.0 | 55.0 | 34 |
| 40 | 1.98 | 33 | 4.0 | 51.5 | 35 |
| 50 | 1.87 | 34 | 5.0 | 48.0 | 36 |
| 60 | 1.80 | 35 | 6.0 | 45.5 | 37 |
| 70 | 1.73 | 35 | 7.0 | 43.0 | 37 |
| 80 | 1.66 | 36 | 8.0 | 40.0 | 37 |
| 90 | 1.56 | 36 | 9.0 | 36.0 | 37 |
| 100 | 1.52 | 37 | 10.0 | 31.5 | 37 |
| 110 | 1.45 | 37 | |||
| 120 | 1.38 | 37 | |||
| 130 | 1.27 | 37 | |||
| 140 | 1.17 | 37 | |||
| 150 | 1.06 | 37 |
* Supply Voltage: 13.8 Volts
FILL RATES
| 2.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 145 PSI | 1 min. 40 sec. (± 05 sec.) |
| 110 to 145 PSI | 32 sec. (± 03 sec.) |
| 35″ X 12.5″ | FILL RATE |
| 0 to 30 PSI | 4 min. 40 sec. (± 10 sec.) |
| 15 to 30 PSI | 2 min. 20 sec. (± 05 sec.) |
| 37″ X 12.5″ | FILL RATE |
| 0 to 30 PSI | 5 min. 00 sec. (± 15 sec.) |
| 15 to 30 PSI | 2 min. 40 sec. (± 10 sec.) |
